New Renderings Support Long-Range Master Plan
Dulles, VA — As part of a decades-spanning vision to transform Dulles International Airport, the Metropolitan Washington Airport Authority (MWAA) enlisted the support of IMD to help visualize the airport’s long-range master plan. Through a series of renderings and animations, IMD brought the ambitious plan to life, enabling planners, stakeholders, and the public to better understand the scope and significance of the transformation ahead.
This extensive master plan outlines the future evolution of Dulles, encompassing new terminal development, expanded cargo and support facilities, a reimagined road and parking network, and even a proposed new runway. By translating technical content into compelling visuals, IMD played a key role in ensuring that the vision was accessible, engaging, and easy to share across audiences.

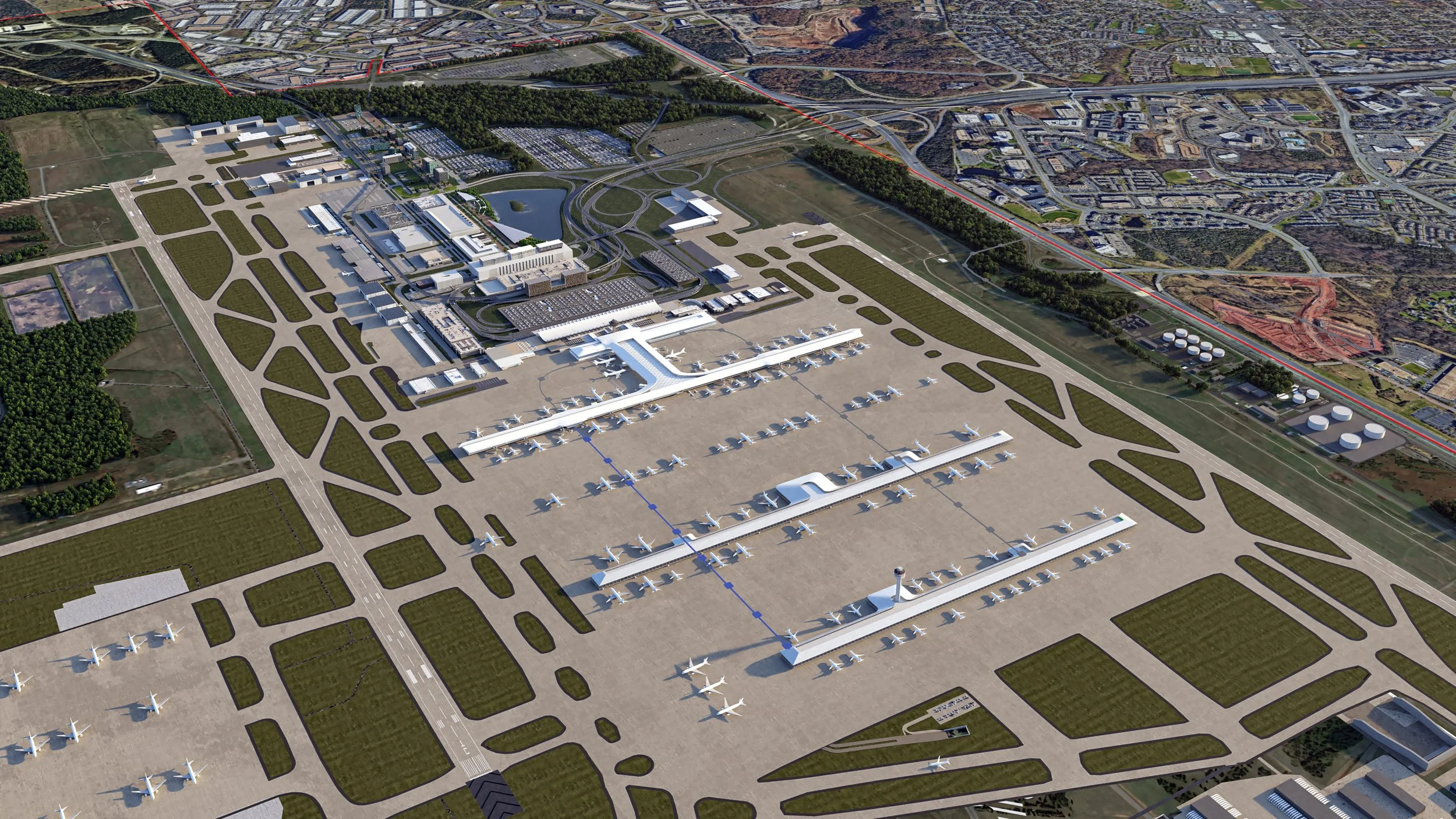

Dulles International Airport Masterplan – Bird’s Eye View
A Transformative Vision for a Growing Region
The future of Dulles involves a bold reimagining of the airport’s footprint and functionality. Among the plan’s most significant features:
-
Terminal Expansion: Visualizations showcased the removal of Concourses C and D, the preservation and expansion of the airport’s central terminal area, and the development of a new terminal already underway.
-
South Side Development: Once an undeveloped area, the south side of the airport is envisioned as a logistics hub. IMD’s renderings illustrated planned cargo facilities, flight kitchens, and maintenance zones designed to support the airport’s growing operational needs.
-
North Side Mixed-Use District: Inspired by the energy of nearby Reston and Tysons Corner, the north side is set to evolve into a vibrant mixed-use zone featuring office space, convention facilities, and modern amenities to serve both staff and travelers.
-
Roadway and Parking Redesign: IMD’s animations detailed the transformation of how travelers move through the airport—from reconfigured roadways to multi-level garages with integrated office space—improving circulation and efficiency across the campus.
-
A Runway for the Future: While years from realization, the proposed new runway was a critical part of the plan. Including it in the visual materials helped emphasize the strategic foresight and land-use planning necessary to protect future infrastructure needs today.
Landside Perspective
Meeting the Challenge of Complexity
Supporting a master plan of this scale came with unique creative and logistical challenges. IMD worked closely with the planners to ensure accuracy and clarity across every phase of the project:
-
Sequencing Decades of Development: The visual team developed animations that could illustrate the gradual evolution of the airport over several decades without overwhelming the viewer. Subtle visual cues such as hatch lines helped convey future development timelines effectively.
-
Modeling a Full Airport Campus: From terminals and roads to cargo, parking, and support zones, the scale of data required careful optimization. IMD ensured the visuals were high-quality and clear across formats, from print boards to large-screen presentations.
-
Real-Time Collaboration: The planning process evolved throughout the project. IMD maintained an iterative workflow, rapidly integrating new data and feedback to ensure visuals remained current and aligned with the project’s direction.
-
Public Engagement Tools: The final visuals were presented during public workshops in 2022, 2023, and 2024. IMD tailored each visual asset to its setting, from 48” x 36” printed boards to high-resolution digital renderings, creating meaningful engagement opportunities for all stakeholders.

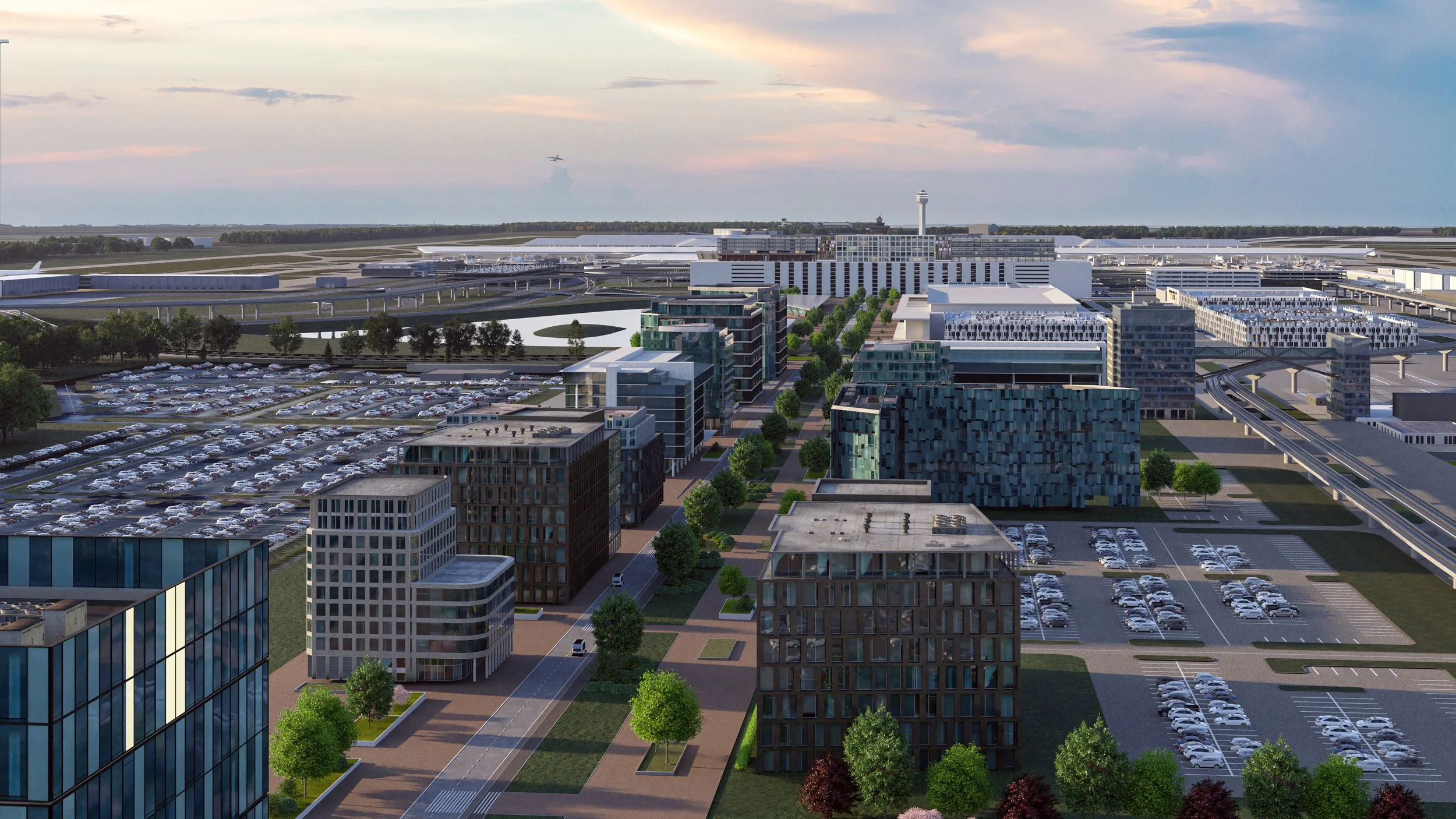

Landside perspective to the North featuring a vision of an office/mixed-use transformation
A Visual Foundation for the Future
With its long-range master plan now publicly shared and well-received, Dulles International Airport is poised for a new era of growth. IMD’s work served not just as visual support, but as a vital communication tool that helped stakeholders understand and connect with the long-term vision for one of the region’s most important transportation hubs.
The Dulles master plan represents more than infrastructure—it reflects a commitment to future-ready design, regional development, and traveler experience. Through IMD’s visual storytelling, that future is now easier to see, share, and support.
