New Main Runway at Reynolds Field Improves Safety & Primes Pump for Revenue Growth

Author:
Ken Wysocky
Published in:
October
2018

Officials at Jackson County Airport/Reynolds Field (JXN) in Michigan are pleased with the results of a $49 million runway project completed last fall, because they see it improving operational safety, creating new opportunities to generate more revenue and bolstering the airport’s position as a local driver of economic growth.

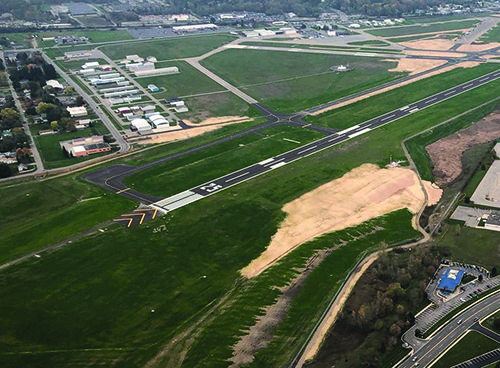

More than 15 years in the making, the project involved shifting and extending a 3,500-foot crosswind runway to 4,000 feet in length and relocating/building a new 5,350-foot main runway. The intersection of the two runways was moved approximately 500 feet north to create room for 1,000-foot-long runway safety areas for the main runway and 300-foot-long runway safety areas for the crosswind runway.

The new design rotated the main runway about 10 degrees clockwise to maintain proper orientation for prevailing winds, while the updated crosswind runway kept its original orientation. The project also added a new parallel taxiway for each runway to ease congestion and make operations safer; new lighting systems for the taxiways and main runway; and roughly 16,500 linear feet of perimeter fencing.

facts&figures

Project: Runway Relocation/Reconstruction

Location: Jackson County (MI) Airport/Reynolds Field

Average Annual Operations: 42,000

Key Components: new 5,350-foot main runway with two 1,000-foot runway safety areas & new parallel taxiway; 4,000-foot crosswind runway with parallel taxiway; new lighting systems; landfill removal

Total Cost: $49 million (includes crosswind runway completed in 2008)

Runway Funding: 95% FAA; 2.5% state; 2.5% airport revenue

Engineering Consultant: Mead & Hunt Inc.

Runway Prime Contractor (Phase 1): M&M Excavating Co.

Asphalt Paving: Michigan Paving & Materials Co.

Electrical Subcontractor: J. Ranck Electric Inc.

Approach Clearing Subcontractor:
Heinz Tree Service

Perimeter Fencing Contractor: D-K Fence Co.

Clearing/Grubbing Prime Contractor: Mead Bros. Excavating Inc.

Runway Prime Contractor (Phase 2): Hoffman Bros. Inc.

Electrical Subcontractor: Rauhorn Electric Inc.

Landfill Removal Cost: $6.5 million

Funding: Jackson County

Landfill Removal Prime Contractor: Terra Contracting Services

Landfill Excavation Consultant: SME

Landfill Disposal Consultant: Envirologic Technologies Inc.

Material Testing Services Subconsultant: Somat Engineering Inc.

Pavement Marking Contactor: PK Contracting

Aeronautical Obstruction Survey Subconsultant: Quantum Spatial Inc.

Land Restoration Contractors: North Slope Inc., Diane Dukes Inc.

Key Benefits: Improved aircraft safety; less taxiway congestion; created space to accommodate more revenue-generating hangars; boosted stature as a corporate aviation center

Given its scope, the project required the cooperation of local, state and FAA officials. The project’s success underscores the importance of maintaining good relationships with such agencies, says Kent Maurer, who served as airport manager at JXN for 16 years and retired earlier this year.

Jackson County contributed $6.5 million to the project, which covered most of the cost of relocating a county-owned landfill that stood just north of the old main runway. The FAA paid for 95% of other project costs, and the state and airport equally split the remaining 5%.

The county’s willingness to pay for the landfill removal was important, because that portion of the project wasn’t eligible for federal funding. “It reflects the commitment of local government to the airport,” Maurer says. “In a lot of communities, a project like this would’ve been dead on arrival at that point.

“It takes political will,” he adds. “Fortunately, our political leaders quickly understood the situation and gave it their support. The airport has an $18 million annual impact on the local economy and generates about $500,000 in revenue a year. You don’t have to do much math to figure out it’s a necessary and vital cog in the local economy.”

JXN is a general aviation airport located about 40 miles south of Lansing, 35 miles west of Ann Arbor and 65 miles east of Kalamazoo. It has 103 based aircraft, mostly privately owned planes, but also several corporate jets. It handles an average of about 42,000 operations annually.

The new main runway is the same length as the old one, while the crosswind runway that was built about 10 years ago is 500 feet longer than its predecessor. The extra length enabled the airport to use the crosswind runway as a primary runway during the roughly six months it took to build the new main runway. As such, the airport was able to stay open during almost all of the construction.

Juan Zapata, the new airport manager as of April, says the extra 500 feet of crosswind runway is significant to the airport and overall region. “As a regional airport, we handle a mixture of smaller airplanes, but we’re really interested in being able to accommodate more corporate aviation,” says Zapata.

As the closest airport to Michigan International Speedway, JXN has 40 to 60 jets landing and parking during the height of racing season. “Most corporate operations prefer at least a 5,000-foot runway, but sometimes they can use a shorter runway,” notes Zapata. “Having a 4,000-foot crosswind runway made it possible for JXN to stay open during most of the construction.”

Catching Up

The need for recent improvements dates back to 1942, when the U.S. Army Corps of Engineers built the old runways during the early stages of World War II (and runway safety areas were not required). When the FAA started to mandate safety areas, JXN and hundreds of other airports around the country were exempt due to their lack of available space. The specific constraints at JXN were an airport road on the east end of the main runway and a railroad track on the west end.

“There was basically no way to add any flat surface to the ends of the runway, absent building a brand-new one,” Maurer relates.

Years ago, a string of aircraft overruns prompted the FAA to lift safety area exemptions nationwide, which forced airports like JXN to comply. If airport officials and project designers couldn’t find a way to add the required safety areas, JXN would have had to operate with a declared landing distance of 4,349 to create de facto safety areas on the existing primary runway.

“That would’ve precluded many aircraft from using the runway,” Maurer explains.

Planning for separate safety areas actually began in 2002, with the development of an airport layout plan. But the start of the project was delayed by the nationwide recession during the late 2000s and the time needed to remove the landfill and acquire 10 land parcels and 16 easements to cut down trees that posed safety hazards. The landfill was old, unlined and filled with unknown contents, so relocating it required extensive and time-consuming soil testing.

“Plus, there were other competing projects in the state that were ahead of us and in a better position to start,” adds Maurer.

Planning & Design

The new crosswind runway built during 2007 and 2008 ensured that the airport could maintain aircraft operations during construction of the new main runway. The airport also completed the intersection of the new crosswind runway and new main runway at this time. “It was a good decision by Mead & Hunt, the consulting engineers,” Maurer notes. “We were able to use the crosswind runway (as a primary runway) only because that new intersection was already constructed. That allowed for a lot more functionality.”

Construction of the main runway was divided into two phases, largely due to the timing of funding distributions and the need to keep the main runway open as long as possible. “We could’ve done most of the major earthwork during the first phase, but the impact would’ve been too severe,” says Dan Kehoe, project manager of aviation services at Mead & Hunt. “We couldn’t take the main runway out of service for almost two years.”

The first phase focused on completing major earthwork on the west end of the project and relocating the landfill. It started in November 2015, stopped that December, resumed in March 2016 and finished that October.

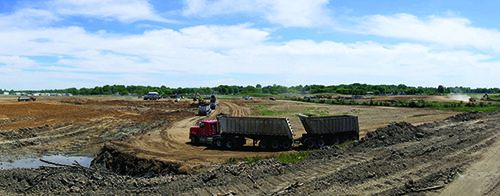

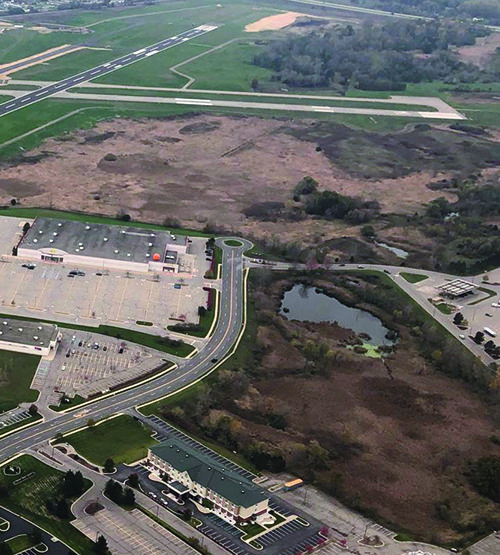

Refuse from the landfill was taken to other certified landfills in the region. In all, crews removed about 200,000 cubic yards (260,000 tons) of material—enough to fill 6,700 double-bottom gravel haulers.

“Of course, you then have this big hole that requires you to haul in another 200,000 cubic yards of dirt to fill it,” Maurer says. “Plus, that end of runway was low, so it had to be brought up to grade.” Overall, the airport imported about 1 million cubic yards of soil.

Pleasant Surprises

In fall 2014, the FAA decided to provide nearly $10 million in discretionary funds to JXN at one time rather than in two phases as airport officials anticipated. The mid-project funding windfall prompted a course-correction for the bidding process.

“We knew we’d need a significant amount of asphalt, almost 32,000 tons, which would eat up a lot of money,” Kehoe explains. “So we ended up bidding all of it out at one time. The contractors worked with us on the pricing (to accommodate any price increases that might occur during the project); but asphalt prices stabilized somewhat anyway, so it was almost a moot point.”

During the second phase of the project, crews removed the old runway and built the new main runway and associated parallel taxiway. They also installed taxiway lighting and approach lighting for the runway. In an eco-friendly move, construction crews used roughly 25,000 cubic yards of pulverized asphalt and gravel debris from the old runway to build the sub-base for the new one.

That recycling effort not only reduced the cost of buying and hauling in new materials; it also decreased expenses associated with trucking away and disposing pavement debris from the old runway. “It saved about $250,000,” Kehoe estimates. “That’s a drop in the bucket compared to the entire project, but every little bit helps.”

The last stage of the project involved building the intersection where the new taxiway meets the crosswind runway. The new runway opened in mid-September 2017, and the crosswind runway-taxiway intersection opened in November.

Overall, the airport was closed for less than a week—four days while crews laid the asphalt pavement for the new main runway, and two other nights, while crews grooved the runway at the intersection.

Reaping the Benefits

The new main runway and 10-year-old crosswind runway—both with grooved pavement—add to the reputation for safety that JXN’s existing control tower helped establish. Airport officials hope to leverage both features to attract more business aviation traffic. Moreover, the new runway location freed up space for more revenue-generating hangars.

The airport currently owns 18 hangars—two corporate box hangars and 16 T-hangars for small private aircraft—and leases land for 65 hangars that are privately owned. All county-owned hangars are occupied, so the airport collects more rent payments than land-lease payments.

Recent airfield improvements, however, are spurring requests from private pilots and corporations for more hangars. That’s prompting JXN officials to consider building more hangars or leasing land to aircraft operators so they can build their own.

“More people want to base their planes on the airport, but they don’t necessarily want to build their own hangars,” Zapata explains. “So we’re looking at the best option for the airport, including whether the county wants to invest in building hangars.”

The airport would generate more revenue renting hangars than leasing land for privately owned hangars, but development is a pricey venture. Zapata estimates that building just one corporate hangar could easily cost $1 million and T-hangars to accommodate 10 smaller aircraft would cost about $750,000, with a 10- to 12-year payback period. Deliberations and cost-benefit analyses lie ahead, he says.

Cooperation & Leadership Forge Success

The FAA originally proposed shortening the old runway to create safety areas and decrease project costs. But given the economic implications, JXN, county and state transportation officials all actively lobbied for a new runway. Their success reflects the importance of cooperative relationships with local government, Zapata notes.

“In years past, a community could get a political sponsor to get a new runway constructed or lengthened,” he says. “Now, all projects need justification. As less and less of airport operations come from the small general aviation community, airport sponsors need to cater to the segment of aviation that is growing tremendously. So any airport interested in providing the best benefit to their community needs to accommodate corporate aviation.”

In retrospect, Maurer says bringing all the relevant stakeholders together and keeping them focused on the project was essential to project’s success. “They all have their own projects going, too,” he points out. “But the stars really aligned for this project …we had the right people in the right places.” Maurer specifically credits the county commissioners, county airport board and James Shotwell Jr., the long-reigning chairman of the Jackson County Board of Commissioners, as instrumental to the project’s success.

“We had very good DNA on this project,” he reflects. “Many people made it a priority for 15 years—from the initial runway safety study in 2002, when alternatives were explored, right up to project completion.”

Kehoe agrees that it was a special project. “There aren’t a lot of brand-new runways being built these days, so everyone had to be at the top of their game,” he says. “Working with Jackson County officials was great because they provided such good leadership. Everyone’s goals were aligned…they knew this was a top-priority project because of the economic impact on the county.”
